Counter Cutout Template: NO Legs

Unit is very heavy!! Take proper safety precautions when lifting and moving.

Unit is front heavy!! Take proper safety precautions when lifting and moving.

Table Lift is recommended to properly lift and move the IDC Pro.

A-

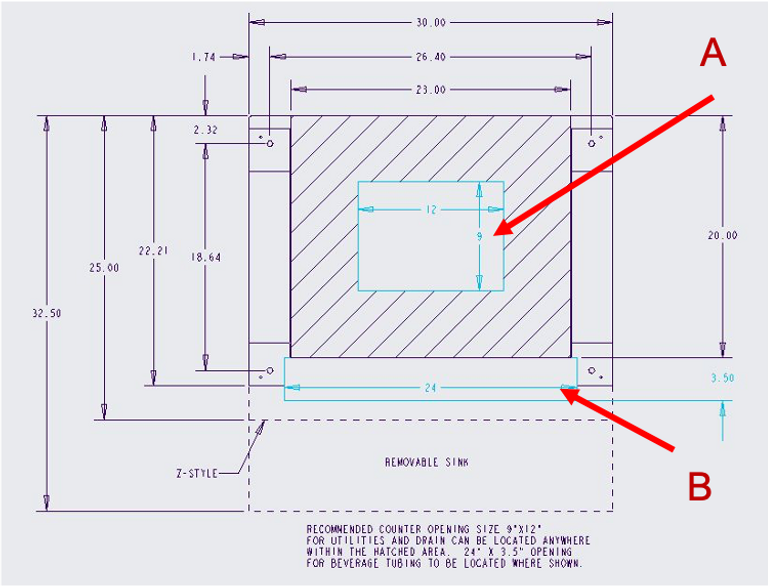

Route drain tubing through the 9”x12” opening.This will allow a nice approach and slope to the drain.You may need to use a 90° fitting if the drain tubing doesn’t lay flat on the counter.

B-
Route beverage tubing, including water and co2, through the front openings.This will allow for ease of access.

Note: make sure to leave a service loop to provide the ability to move equipment as needed.If the front cutout is not provided, you can utilize the 9”x12” for beverage and drain tubing.

IF MOUNTING AN ICE MAKER, PROCEED TO NEXT STEP: TOP MOUNTED ICE MAKER IF NO TOP MOUNTED ICE MAKER, PROCEED TO NEXT STEP: PLUMBING

Counter Cutout Template: NO Legs
